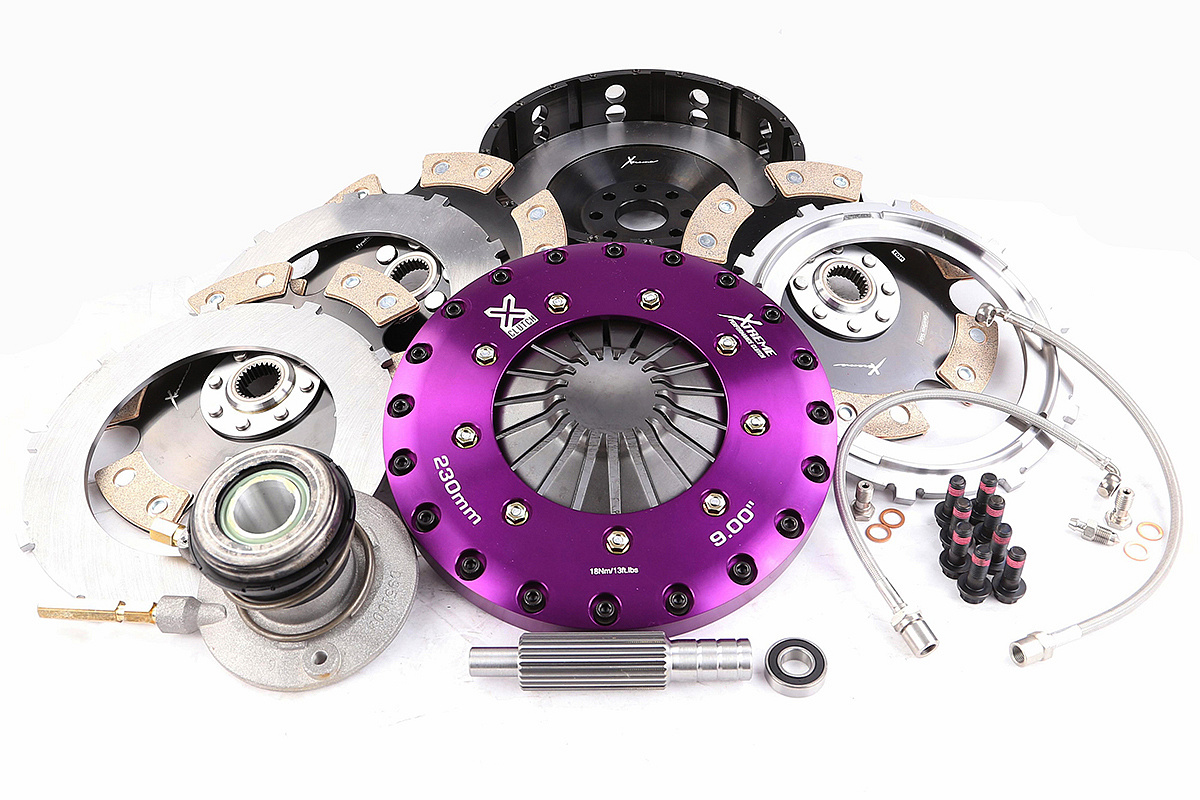

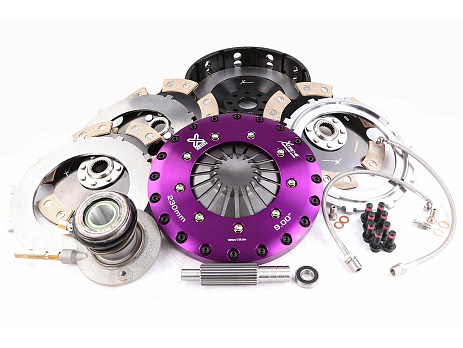

| The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use.The Xtreme 230mm Race Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range. |
 |  | | Flat Diaphragm | Rolled Diaphragm | | Clamping Force | 1300kg | 1300kg | | Torque Rating | 1800Nm | 1800Nm | | Bearing Contact Diameter | 65mm | FLAT BEARING | | Bearing Load (@ 48mm) | 180kg | 150kg | | Release Travel Required | 7mm | 7mm | | Assembly Mass (without flywheel) | 8.30kg | 8.30kg | | Disc Set Static Mass | 2.25kg | 2.25kg | | Friction Thickness New | 8mm (0.315") | 8mm (0.315") | | Friction Thickness Worn | 7.5mm (0.295") | 7.5mm (0.295") | Product Features: - Push type billet alloy cover Low pedal effort
- 4140 Chromoly pressure & intermediate plates
- Chromoly adapter ring
- Low inertia
- Serviceable components
- SFI certified design
|
