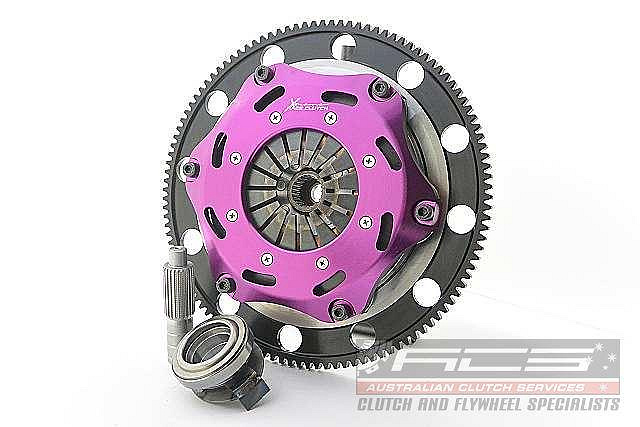

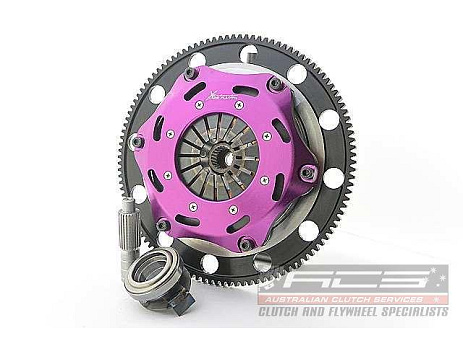

| The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts. |
 | | | Ø184mm Light Diaphragm (2.6mm) | Ø184mm Heavy Diaphragm (2.8mm) | | Clamping Force | 950kg | 1080kg | | Torque Rating | 535Nm (395ft.lbs) | 610Nm (450ft.lbs) | | Bearing Contact Diameter | 44-52mm | 44-52mm | | Bearing Load (@ 48mm) | 210kg | 260kg | | Release Travel Required | 5mm | 5mm | | Assembly Mass (without flywheel) | 3.10kg | 3.10kg | | Disc Set Static Mass | 0.6kg | | Friction Thickness New | 6.35mm (0.250") | 6.35mm (0.250") | | Friction Thickness Worn | 5.58mm (0.220") | 5.58mm (0.220") | Product Features: - Push type billet alloy cover
- 4140 Chromoly pressure plate
- Hardened steel wear posts
- High and low ratio pressure plate options
- Low inertia
- Serviceable components
- SFI certified design
|
Australian Clutch Services Pty Ltd, 1 Hakkinen Road (cnr Cormack & South Rds), Wingfield SA 5013, Autralia, sales@australianclutch.com.au
